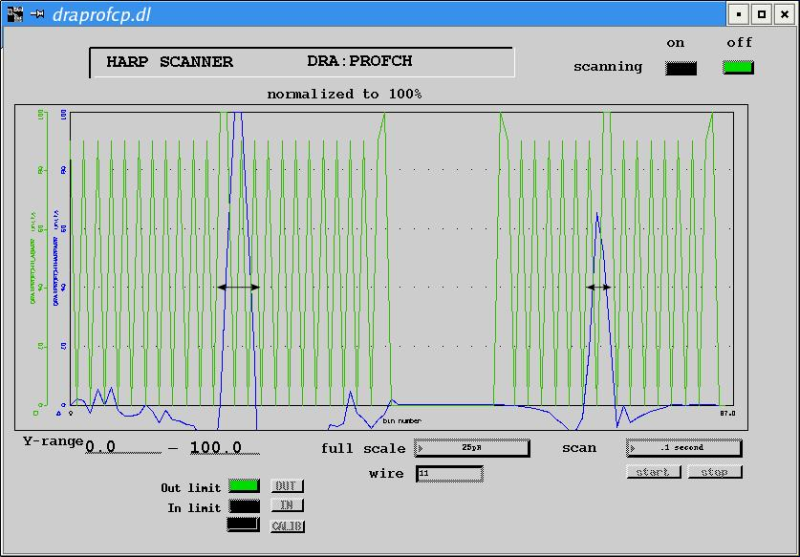

"Typical" profile monitor image with Q1,Q2 on. The black arrows indicate the range of Quads-Off centroid shifts corresponding to less than 1 mrad misalignment of beam at the gas target.
